How to Mark a Football Pitch From Scratch

Introduction


Want to know how to mark a football pitch from scratch? Whether you’ve never marked a pitch, just want a reminder, or perhaps just curious – this guide is for you!


We will cover every step of marking a football pitch, all condensed into 8 bite-size steps.


Although these steps are based on the FA’s Over-18 and Adult-Football dimensions, this guide can be applied to any pitch, providing you have the dimensions.


What You'll Need:

  • Line Marking Machine

  • Line Marking Paint

  • Measuring Tape

  • String Line

  • Pegs

  • 3-4-5 Triangle (optional)

Preparations:


1 - Cut the grass and make sure any grass cuttings are removed from the pitch. Ideally paint the grass when dry, if possible.


2 - Find the dimensions for the football pitch you will be marking. This guide will be using full-size pitch dimensions for over-18 & adult football.

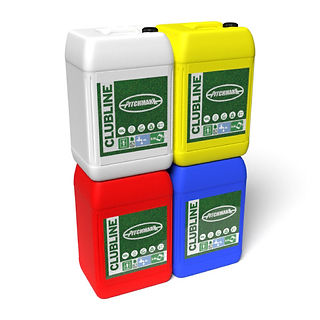

3 - Prepare your paint. For example, Clubline is a concentrate and needs mixing thoroughly with water – 4:2.5 – 4 parts water, 2.5 parts paint. This means 10L Clubline shall be mixed with 16L water.


4 - Pour the mixed paint into your machine and you’re ready to mark the pitch!

Step 1 (with goals in place):

How To Mark A Football Pitch From Scratch Step 1.1

With goals in place:

Using the goals as the mid-point, measure the width and place a peg at each end.


Measurements:

A - C - 64m / 70 yards

A - B - 32m / 35 yards

A - D - 100.58m / 110 yards

Step 1 (without goals in place):

How To Mark A Football Pitch From Scratch Step 1.2

Without goals in place:

Use the 3-4-5 method to measure out the perimeters of the pitch. This will ensure your pitch will have perfect 90° right angles.


Start with one straight line (A - B) and measure out 30m from one end towards the other (point C). Next measure out 40m from point A - D and 50m from C - D. Where these two points meet will create the perfect right angle.


Using this method on the first two corners correctly means you won’t need to use the 3-4-5 on the last two corners.


Measurements:

A - C - 30m / 30 yards

C - D - 50m / 50 yards

A - D - 40m / 40 yards

Step 2:

How To Mark A Football Pitch From Scratch Step 2

Instructions:

Run the string from one peg to the other and ensure the string is taught – this will keep your line straight and act as a guide.


Now you are ready to mark the perimeter lines with your machine, follow the string line as close as possible to ensure your lines are straight.


Measurements:

A - B - 100.58m / 110 yards

Step 3:

How To Mark A Football Pitch From Scratch Step 3

Instructions:

Measure and peg out the box perimeters from the centre of the goal. Mark the lines for the box following the string guides.


Measurements:

A-B - 20.11m / 22 yards

B-C - 16.45m / 18 yards

B-D - 40.23m / 44 yards

E-F - 9.14m / 10 yards

H-F - 18.28m / 20 yards

F-G - 5.48m / 6 yards

Step 4:

How To Mark A Football Pitch From Scratch Step 4

Instructions:

Measure and peg out the halfway point across both lengths of the pitch. Run the string line between the pegs and mark the halfway line.


Measurements:

A-B - 50.29m / 55 yards

B-C - 64m / 70 yards

Step 5:

How To Mark A Football Pitch From Scratch Step 5

Instructions:

Find the midpoint of the halfway line and mark the centre spot with aerosol or brush. Place a peg in the centre spot, attach one end of the string to the peg, and the other to your line marking machine. Keep string tight as you walk around for the perfect circle.


Measurements:

A-B - 9.14m / 10 yards

Step 6:

How To Mark A Football Pitch From Scratch Step 6

Instructions:

From the centre of the goal lines, measure out and paint the penalty spot, using either your machine, a paintbrush, or aerosol.


Measurements:

A-B - 10.97m / 12 yards

Step 7:

How To Mark A Football Pitch From Scratch Step 7

Instructions:

From the penalty spot, measure out the radius for the “D” and mark the line using the same method as step 5.


Measurements:

A-B - 9.14m / 10 yards

Step 8:

How To Mark A Football Pitch From Scratch Step 8

Instructions:

Finish the job by marking the corners using the same method as step 5, and enjoy the game!


Measurements:

A-B - 0.91m / 1 yard
